FOUNDER’S SERIES

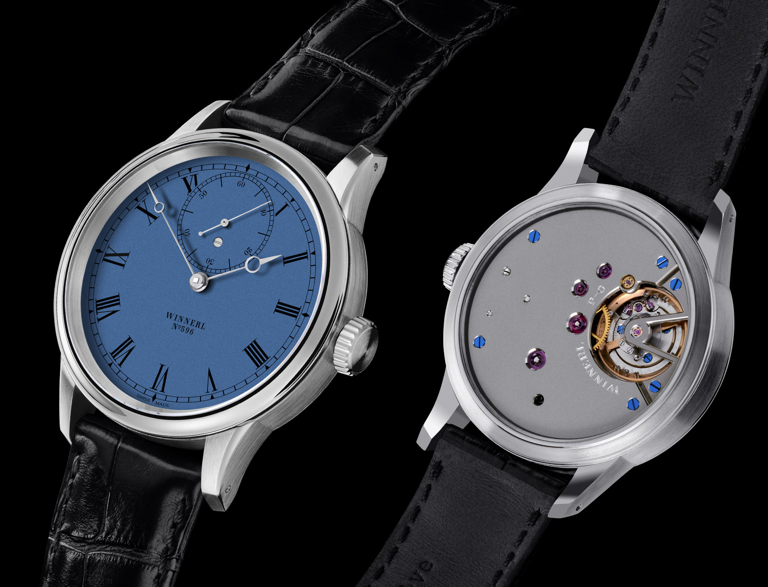

Founder’s Series № 596

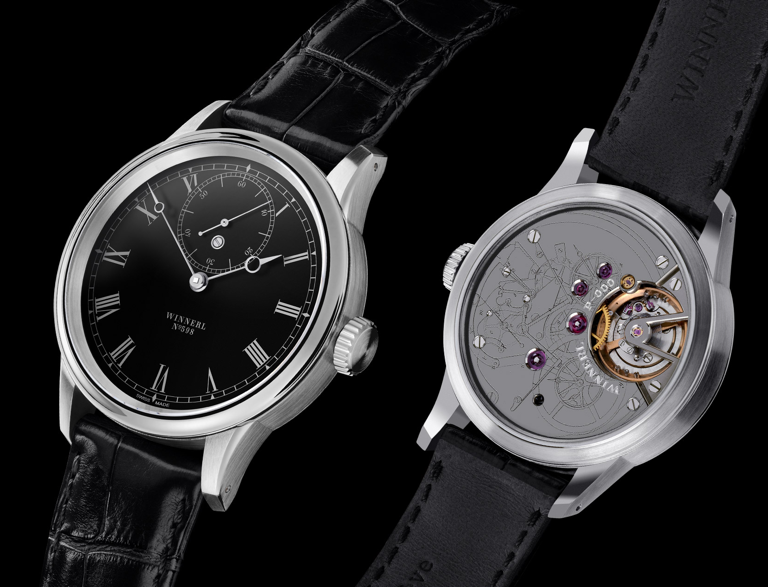

Founder’s Series № 598

18K White Gold Case, Blue Gold Dial,

Polished Steel Hands

18K Red Gold Case, White Enamel Dial,

Blued Steel Hands

Platinum Case, Black Enamel Dial,

Polished Steel Hands

Movement 3/4 Plate Finished With Geneva Stripes

 Diameter: 40 millimeters

Movement 3/4 Plate Finished With Engraving

 Diameter: 40 millimeters

Each timepiece marks the first use in a wristwatch of Winnerl’s specially designed balance wheel. Directly patterned after an example found in one of his ship’s chronometers, the unique, slanting sides of the balance wheel allows exceptionally fine regulation of its inertia. The large, Winnerl designed 3/4 plate surrounding it, would later be adopted by Adolph Lange after finishing his apprenticeship with Winnerl. This plate construction, in addition to providing great stability to the movement, also visually highlights the unique balance construction.

The versions shown here will never be repeated, even after serial production begins. The Founder’s Series represents the first steps in restoring Winnerl’s legacy to its proper place in the 21st century, and are therefore an integral part of his history.

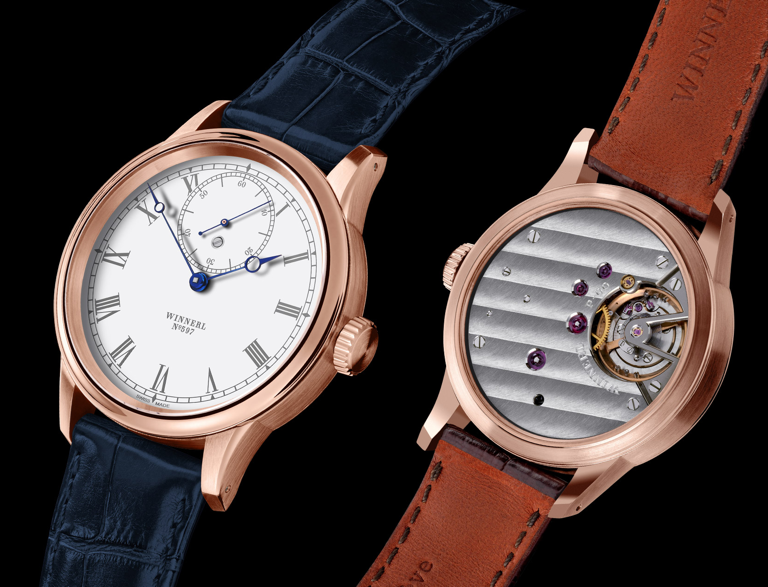

Founder’s Series № 597

Movement 3/4 Plate Finished With Silver Grainage

Diameter: 40 millimeters

TECHNICAL SPECIFICATIONS

CASE

Diameter

Thickness

Glass (front and back)

Water resistance

Strap attachment



40.00 mm

10.35 mm

Sapphire with anti reflective coating

100 meters

Screwed and sprung safety fastening

STRAP

20.00 case / 18.00 buckle

BUCKLE

Specially designed ‘flat line’ buckle

MOVEMENT

Diameter

Thickness

Power reserve

Total No. of jewels

Total No. of parts


33.00 mm

4.30 mm

32 hours

21

93

BALANCE

Material

Diameter

Height

Angle

Weight screws

Regulation screws

Hairspring


Beryllium copper

13.00 mm

1.00 mm

45°

4 x in white gold

4x in steel

Breguet overcoil

WARRANTY

2 years
